HOME > 제품소개 > 제품정보

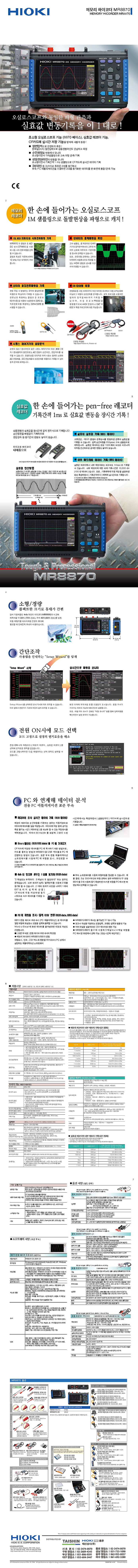

MR8870-20
2ch 절연, Single 메모리 레코더
제품번호 : MR8870-20
제 품 명  : MEMORY HiCORDER
제품분류 : 레코더




순간 파형 모드와 RMS값 변동 기록 모드를 탑재
CF 카드로 실시간 저장을 실현
2대 동기+부속 PC 어플리케이션으로 도합 4ch 레코더로서도 사용 가능
초소형 + 1M sampling의 고기능
Compact & Sharp, 와이드 QVGA-TFT 액정 탑재


  Number of channels 2 analog channels + 4 logic channels (standard)
Note: Isolated analog channels, isolated input and frame, logic has common GND
  Measurement ranges 10 mV to 50 V/div (10 div full-scale), 12 ranges, Resolution: 1/100 of range
  Max. rated voltage Between terminals: 400 VDC, Between terminal to earth: 300 VAC, DC CAT II
  Frequency characteristics DC to 50 kHz (-3 dB)
  Time axis (Memory mode) 100 μs to 5 min/div, 20 ranges,at 100 points/div resolution,
three steps of time-axis magnification from ×2 to ×10,
and 9 steps of time-axis compression from ×1/2 to ×1/1,000
  Recording intervals (RMS mode) 1 ms to 1 min., 16 settings, sampling period: 200 μs (fixed) (for AC voltage/current,
1,000 RMS values/sec.), envelope mode always on
Note: Only the maximum value and minimum value for each recording interval are recorded.
  Measurement functions Memory recorder (high speed recording), RMS recorder (50/60 Hz, DC only)
  Memory capacity 12-bits × 2M-words/ch (1 word = 2 bytes)
  Removable storage CF card TYPE I slot ×1 (Up to 2 GB)
  Display 4.3-inch WQVGA-TFT color LCD (480 × 272 dots)
  Interfaces USB 2.0 mini-B receptacle ×1, Functionality: Connect the instrument to a PC to send files on the CF card to the PC. The instrument cannot be controlled from a PC.
  Printer N/A
  Power supply AC Adapter Z1005: 100 to 240 VAC (50/60 Hz) , 30 VA max. (when using the AC adapter and charging the 9780 with the instrument)
Battery Pack 9780: 3 VA, continuous operating time of approx. 2 hr. (25°C reference value when used with the Z1005, the Z1005 takes priority), charging time of 200 min.
using the AC adapter (25°C reference value) (option)
External DC power: 10 to 16 V, 10 VA max. (connection cord of 3 m or less is available by special-order)
  Dimension and Mass 176 mm (6.93 in)W × 101 mm (3.98 in)H × 41 mm (1.61 in)D,
600 g (21.2 oz) (with the Battery pack 9780 installed)
  Accessories Instruction manual ×1, Measurement guide ×1, AC adapter Z1005 ×1, Strap ×1,
USB cable ×1, Application disk (Dedicated program for the MR8870) ×1, Protection sheet 9809 ×1





Storage media

PC CARD 512M
9728


PC CARD 1G
9729


PC CARD 2G
9830

Input Cable

GRABBER CLIP
9790-02


CONTACT PIN
9790-03


CONNECTION CORD(600V Max)
L9790


ALLIGATOR CLIP
L9790-01


GRABBER CLIP
9243


CONNECTION CORD(300V Max)
L9198


CONNECTION CORD
L9197


DIFFERENTIAL PROBE
P9000


AC ADAPTER
Z1008


WAVE COMMUNICATOR
9332


AC ADAPTER
9418-15

Logic signal measurement

LOGIC PROBE
9320-01


LOGIC PROBE
9320


CONVERSION CABLE
9323


LOGIC PROBE
MR9321


LOGIC PROBE
MR9321-01

Logic signal measurement

LOGIC PROBE
9327


LOGIC PROBE
9320-01


LOGIC PROBE
9320


LOGIC PROBE
MR9321


LOGIC PROBE
MR9321-01


CONVERSION CABLE
9323

Current Measurement (200A to 1000A, High Precision)

CLAMP ON SENSOR
CT6862


CLAMP ON SENSOR
CT6863


AC/DC CURRENT PROBE
CT6841


AC/DC CURRENT PROBE
CT6843


CLAMP ON SENSOR
9272-10


AC/DC CURRENT SENSOR
9709


AC/DC CURRENT PROBE
CT6844


AC/DC CURRENT PROBE
CT6845


AC/DC CURRENT PROBE
CT6846

Current Measurement (100A to 2000A, Medium Speed)

AC/DC CURRENT SENSOR
CT7631


AC/DC CURRENT SENSOR
CT7636


AC/DC CURRENT SENSOR
CT7642


AC/DC AUTO-ZERO CURRENT SENSOR
CT7731


AC/DC CURRENT SENSOR
CT7736


AC/DC CURRENT SENSOR
CT7742


DISPLAY UNIT
CM7290


CLAMP ON AC/DC SENSOR
CT9691


CLAMP ON AC/DC SENSOR
CT9692


CLAMP ON AC/DC SENSOR
CT9693


Power supply for the sensor
CT6590

Current Measurement (500A to 5000A)

CLAMP ON PROBE
9018-50


CLAMP ON PROBE
9132-50


AC FLEXIBLE CURRENT SENSOR
CT9667

Power Supply

SENSOR UNIT
9555-10


CONNECTION CORD(BNC-BNC)
L9217

Leak Current

OUTPUT CORD
9094


CONVERSION ADAPTER
9199


AC ADAPTER
9445-02


클램프온 리크하이테스터
3283

Other Options

BATTERY PACK
9780


AC ADAPTER
Z1005


OUTPUT CORD
9094


CONVERSION ADAPTER
9199


LAN CABLE
9642
