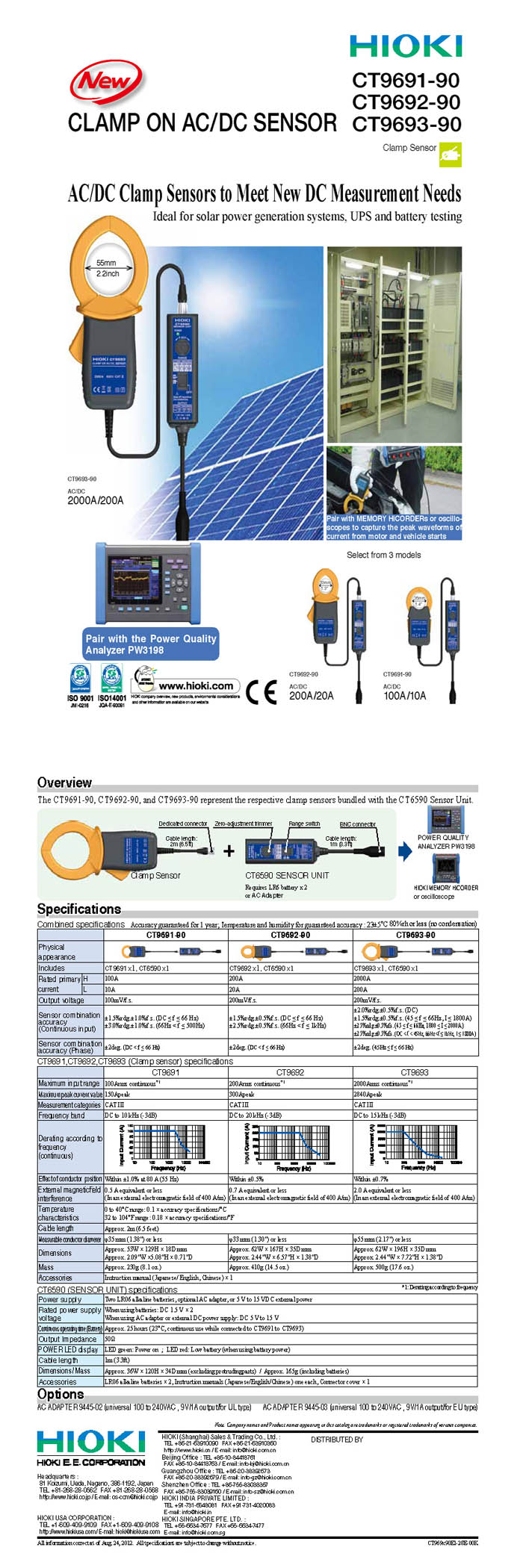

· 태양광 발전 시스템, UPS 및 배터리 테스트에 적합
· EV, HEV 하이브리드 전기차량 의 분야에서 대전류 측정 대응 (CT9693)
· DC~10kHz(CT9691), DC~20kHz(CT9692) 우수한 주파수 대역
· 태양광발전 및 배터리 충방전, 인버터 2차측 측정가능
· 오실로스코프, 레코더 등으로 파형 모니터가 가능 (CT6590 필요)
CT9691 : DC ~ 10 kHz, 100 A
CT9692 : DC ~ 20 kHz, 200 A
CT9693 : DC ~ 15 kHz, 2000 A
CT6590 : 센서 전원 공급 장치
CT9691-90 : CT9691 + CT6590
CT9692-90 : CT9692 + CT6590
CT9693-90 : CT9692 + CT6590
|
|
|
 |
Basic specifications
|
CT9691 |
CT9692 |
CT9693 |
| Rated input current |
100 A AC/DC |
200 A AC/DC |
2000 A AC/DC |
| Max. allowable input |
Continuous 100 Arms |
Continuous 200 Arms |
Continuous 2000 Arms |
| Band width |
DC to 10 kHz (-3dB) |
DC to 20 kHz (-3dB) |
DC to 15 kHz (-3dB) |
| Max. rated voltage to earth |
600V AC/DC CAT III |
| Power consumption |
50 mVA |
| Core diameter |
φ 35 mm (1.38 in) |
φ 33 mm (1.30 in) |
φ 55 mm (2.17 in) |
| Dimensions, mass |
53 mm (2.09 in) W × 129 mm (5.08 in) H × 18 mm (0.71 in) D, 230 g (8.1 oz) |
62 mm (2.44 in) W × 167 mm (6.57 in) H × 35 mm (1.38 in) D, 410 g (14.5 oz) |
62 mm (2.44 in) W × 196 mm (7.72 in) H × 35 mm (1.38 in) D, 500 g (17.6 oz) |
| Cord length |
2 m (6.56 ft) |
| Supplied accessories |
Instruction manual ×1 |
CT6590 Basic specifications(Power supply for sensor)
| Compatible sensor models |
CT9691, 9691
(9691: Phase not defined) |
CT9692, 9692
(9692: Phase not defined) |
CT9693, 9693
(9693: Phase not defined) |
| Output |
Selectable H range/ L range, BNC terminal |
| Output (in combination with a sensor) |
100 mV f.s./100A range
100 mV f.s./10A range |
200 mV f.s./200A range
200 mV f.s./20A range |
200 mV f.s./2000A range
200 mV f.s./200A range |
Amplitude basic accuracy
(in combination with a sensor) |
±1.5 % rdg. ±1.0 % f.s.
(DC ≤ f ≤ 66 Hz) |
±1.5 % rdg. ±0.5 % f.s.
(DC ≤ f ≤ 66 Hz) |
±1.5 % rdg. ±0.5 % f.s.
(45 ≤ f ≤ 66 Hz) |
Phase basic accuracy
(in combination with a sensor) |
±2 deg. (DC < f ≤ 66 Hz) |
±2 deg. (DC < f ≤ 66 Hz) |
±2 deg. (45 ≤ f ≤ 66 Hz) |
| Power supply |
LR6 (AA) alkaline batteries ×2, Continuous use : 25 hr (Rated Power 1 VA), or AC adapter 9445-02/-03 (Rated Power 1.5 VA), or External power supply 5 to 15 VDC (Rated Power 1.5 VA) |
| Dimensions, mass |
36 mm (1.42 in)W × 120 mm (4.72 in)H × 34 mm (1.34 in) D, 165 g (5.8 oz) (including batteries), cord length 1 m (3.28 ft) |
| Supplied accessories |
LR6 (AA) alkaline batteries ×2, Instruction manual ×1, Connector cover ×1 |
|
|
 |
|
|
|
 |
|
| |
|
|
제품번호 : CT9692
