MR8880-20
미세한 신호에서 고전압까지 측정가능한 레코더
제품번호 : MR8880-20
제 품 명  : MEMORY HiCORDER
제품분류 : 레코더



* 본제품은 태신상사 기술영업사원과 상담이 필요합니다.
  제품데모도 가능하오니 문의바랍니다.(문의처는 홈페이지 하단참조)

CAT III 600V의 절연 성능, 480V 라인을 직접 측정 가능
4ch 절연 입력 (3상 전원 라인 +1 ch 동시 기록 가능)
극한 환경에서도 정상작동(온도 범위 : -10 ℃ ~ 50 ℃)
충격과 진동에 강한 설계
내비게이션 기능으로 간단한 조작가능

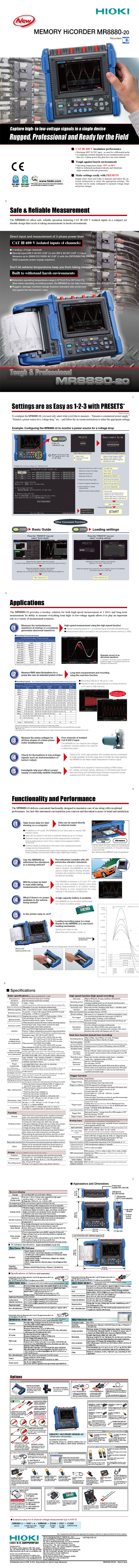

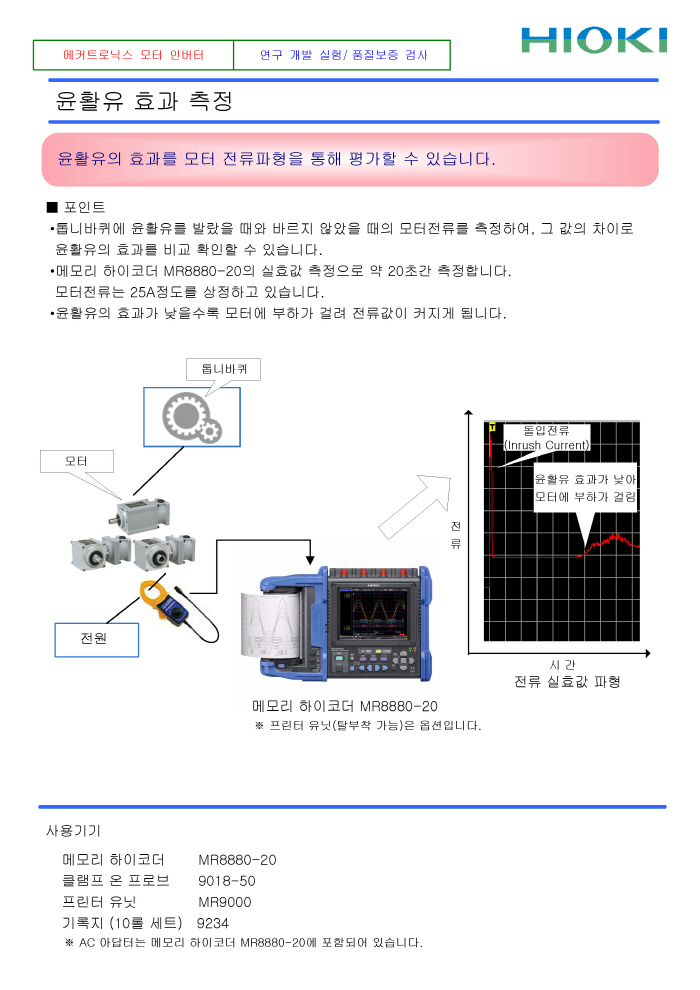

활용법 예1(PDF로 다운로드)

Basic specifications
Number of channels 4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges
(10 div full-scale)
4 channels of voltage measurement; mode switchable between instantaneous waveform, or RMS value
10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range
RMS value mode: 30 Hz to 10 kHz, Crest factor: 2
Max. rated voltage Between terminals: 600 VAC, DC
Between terminal to earth: 600 VAC, DC CAT III, 300 VAC, DC CAT IV
Frequency characteristics DC to 100 kHz (±3dB)
Time axis (High-speed function) 100 μs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
Recording intervals (Real-time function) 100 μs to 1 minute, 19 selections (simultaneous sampling in all channels)
Measurement functions High-speed function (high speed recording)
Real-time function (actual time recording)
Memory capacity 14-bits × 1M-Words/ch (1 word = 2 bytes)
Removable storage CF Card slot ×1 (Up to 2 GB), USB 2.0 memory ×1
Printing [Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec
Note: Printing is not supported when using alkaline batteries
Display 5.7-inch VGA-TFT color LCD (640 × 480 dots)
Displayable languages English, Japanese, Chinese
Communication interfaces USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control
Power supply AC ADAPTER Z1002: 100 to 240 VAC (50/60 Hz), 11 VA (when Real-time recording) , 40 VA (when Real-time recording and printing)
BATTERY PACK Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (at back-light ON)
LR6 (AA) alkaline batteries × 8, Continuous use 40 minutes, (with back-light ON, cannot be used with the PRINTER UNIT)
DC power supply: 10 to 28 VDC (cable available by special order)
Dimensions, mass 205 mm (8.07 in) W × 199 mm (7.83 in) H × 67 mm (2.64 in) D, 1.66 kg (58.6 oz) (with the BATTERY PACK installed)
When printer is combined - with main unit: 303 mm (11.93 in) W × 199 mm (7.83 in) H × 67 mm (2.64 in) D, 2.16 kg (76.2 oz) (with the BATTERY PACK installed)
Supplied accessories Instruction Manual × 1, AC ADAPTER Z1002 × 1, Alkaline battery box × 1, Strap × 1, USB cable × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1




Voltage measurement (Voltage is limited to the specifications of the MR8880-20 input)

CONNECTION CORD(600V Max)
L9790


ALLIGATOR CLIP
L9790-01


CONTACT PIN
9790-03


GRABBER CLIP
9790-02


CONNECTION CORD(300V Max)
L9198


CONNECTION CORD(500V Max)
9197


GRABBER CLIP
9243

High-Voltage measurement (for use with the power supply)

DIFFERENTIAL PROBE
9322


AC ADAPTER
9418-15

Logic Signal Measurement

LOGIC PROBE
9320-01


LOGIC PROBE
MR9321-01


CONVERSION CABLE
9323

Current measurement *Use in combination with the Sensor Unit 9555-10

noname
CT9279


noname
CT9278


noname
CT9277


CLAMP ON SENSOR
9272-10


SENSOR UNIT
9555-10


CONNECTION CORD(BNC-BNC)
L9217

Current measurement * For commercial power lines, 50/60Hz (separate power supply not required)

CLAMP ON PROBE
9018-50


CLAMP ON PROBE
9132-50

Leak current / Load current measurement

클램프온 리크하이테스터
3283


클램프 온 AC/DC하이 테스터
3284


클램프 온 AC/DC하이 테스터
3285

Current measurement (Other current meters with analog output function also compatible)

AC/DC 클램프 온 하이테스터
3290


CLAMP ON AC/DC SENSOR
9691


CLAMP ON AC/DC SENSOR
9692


CLAMP ON AC/DC SENSOR
9693


OUTPUT CORD
9094

Printer options

RECORDING PAPER
9234


PRINTER UNIT
MR9000

PC Software

WAVE PROCESSOR
9335

Removable storage (CF card)

PC CARD 2G
9830


PC CARD 1G
9729


PC CARD 512M
9728


PC CARD 256M
9727

Power supply and Other options

AC ADAPTER
Z1002


BATTERY PACK
Z1000


CARRYING CASE
C1003


CONNECTION CORD(BNC-BNC)
L9217


CONVERSION ADAPTER
9199


CARRYING CASE
9400


AC ADAPTER
9445-02


AC ADAPTER
9445-03
